GDT

Global Descriptor Table. More...

Collaboration diagram for GDT:

Data Structures
struct	gdtr_t
	the GDTR register pointing to the GDT More...
union	gdt_selector_t
	A selector in the GDT. More...
struct	gdt_entry_t
	An entry in the GDT. More...

Macros
#define	GDT_ENTRIES   6
	number of entries in the GDT More...
#define	GDT_RING0_CODE_SEG   1
	kernel code segment index
#define	GDT_RING0_DATA_SEG   2
	kernel data segment index
#define	GDT_RING3_CODE_SEG   3
	user code segment index
#define	GDT_RING3_DATA_SEG   4
	user data segment index
#define	GDT_TASK_STATE_SEG   5
	task state segment index

Functions
void	gdt_init_entry (size_t entry, uint32_t base, uint32_t limit)
	Sets basic parameters of a GDT entry. More...
static void	gdt_load ()
	Loads the GDT into the GDTR register.
void	gdt_flush ()
	Loads the kernel code and data segments into the segment registers. More...
void	gdt_init ()
	Initializes the GDT. More...
uint16_t	gdt_get_selector (size_t entry)
	Returns a selector ready to be loaded in a segment register. More...

Variables
static gdt_entry_t	gdt [GDT_ENTRIES]
	The GDT itself. It is located inside the kernel.

Detailed Description

Global Descriptor Table.

The GDT defines memory segments that can be used for memory protection. Here we use a flat memory model, therefore we only need 2 entries for the kernel and user space each and a TSS.

See also

gdt_asm.S

http://www.lowlevel.eu/wiki/Global_Descriptor_Table

http://wiki.osdev.org/Segmentation

http://wiki.osdev.org/GDT

http://wiki.osdev.org/GDT_Tutorial

https://en.wikibooks.org/wiki/X86_Assembly/Global_Descriptor_Table

https://stackoverflow.com/questions/23978486/far-jump-in-gdt-in-bootloader/23979175#23979175

Macro Definition Documentation

#define GDT_ENTRIES   6

number of entries in the GDT

See also

gdt_init

Definition at line 12 of file gdt.h.

Function Documentation

void gdt_flush

(

)

Loads the kernel code and data segments into the segment registers.

See also

gdt_flush in gdt_asm.S

Here is the caller graph for this function:

uint16_t gdt_get_selector

(

size_t

entry

)

Returns a selector ready to be loaded in a segment register.

These selectors are used in segment registers, the IDT and to switch to user space.

Parameters

entry

index into the GDT

Returns

a GDT selector corresponding to the GDT entry

See also

GDT_RING0_CODE_SEG

GDT_RING0_DATA_SEG

GDT_RING3_CODE_SEG

GDT_RING3_DATA_SEG

GDT_TASK_STATE_SEG

Definition at line 103 of file gdt.c.

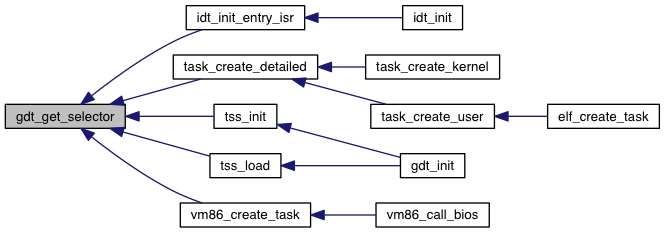

Here is the caller graph for this function:

void gdt_init

(

)

Initializes the GDT.

Creates the following descriptors for a flat memory model:

• null descriptor
• kernel code segment
• kernel data segment
• user code segment
• user data segment
• task state segment

Then loads the GDT into GDTR and sets the segments registers.

It also loads the TSS into the TR register.

Definition at line 72 of file gdt.c.

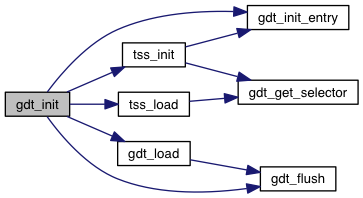

Here is the call graph for this function:

void gdt_init_entry	(	size_t	entry,
		uint32_t	base,
		uint32_t	limit
	)

Sets basic parameters of a GDT entry.

Parameters

entry	index into the GDT
base	where the segment begins
limit	maximum offset allowed

Definition at line 49 of file gdt.c.

Here is the caller graph for this function:
